Supporters Lozart Posted March 5 Supporters Share Posted March 5 I've got an Aster in the gun I am running the brushless motor in. AB is all the way off and to be honest, even on a 7.4v LiPo I'm not seeing any reason to bother with precocking. ak2m4 1 Link to comment Share on other sites More sharing options...
ak2m4 Posted March 5 Share Posted March 5 @Colin Allen Are you fitting it to a SCAR ? Link to comment Share on other sites More sharing options...
Supporters Lozart Posted March 5 Supporters Share Posted March 5 18 minutes ago, ak2m4 said: @Colin Allen Are you fitting it to a SCAR ? Just for reference, my SCAR is the old G&G SCAR L, and it has a PTS MIAD grip on it. ak2m4 1 Link to comment Share on other sites More sharing options...
Colin Allen Posted March 5 Share Posted March 5 3 hours ago, ak2m4 said: @Colin Allen Are you fitting it to a SCAR ? It is in an M4. Link to comment Share on other sites More sharing options...
ak2m4 Posted March 5 Share Posted March 5 10 minutes ago, Colin Allen said: It is in an M4. Ahh right, has it got a different style of grip? Could I trouble you to post a pic of it please? Link to comment Share on other sites More sharing options...
ak2m4 Posted March 5 Share Posted March 5 Factory just sent the stats over to me, not had a real chance to go through them yet: Pseudotectonic 1 Link to comment Share on other sites More sharing options...

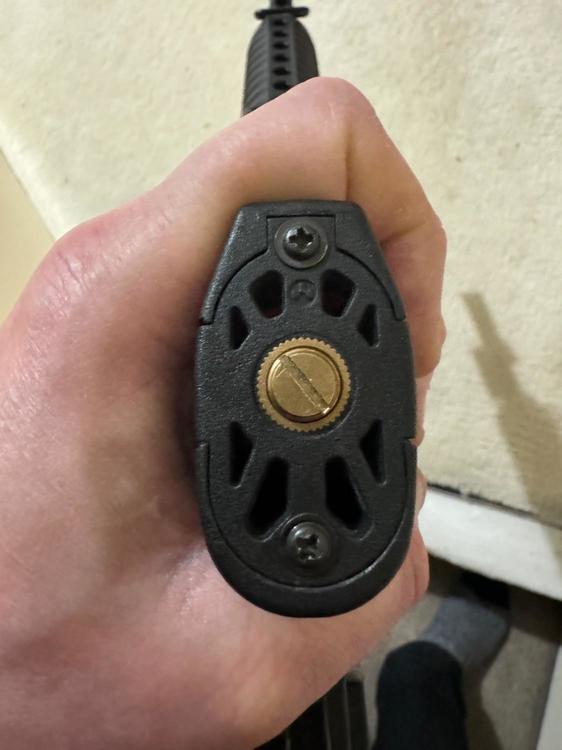

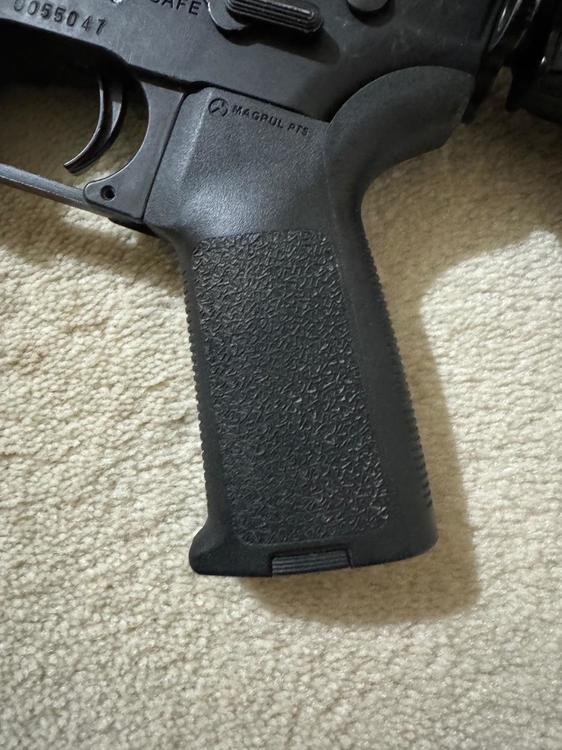

Colin Allen Posted March 5 Share Posted March 5 3 hours ago, ak2m4 said: Ahh right, has it got a different style of grip? Could I trouble you to post a pic of it please? It is a PTS grip. Link to comment Share on other sites More sharing options...
ak2m4 Posted March 5 Share Posted March 5 @Colin Allen thanks, i've got a epg-c one here I'll give it a test. Also have one of those from an old g+p magpul so i'll try it out. Link to comment Share on other sites More sharing options...
Fatboy40 Posted March 5 Author Share Posted March 5 @Colin Allen It's subtlety different from yours but I'm going to get one of these next pay day... https://www.ptssyndicate.com/product-page/pts-ep-series-enhanced-polymer-m4-grip-epg-for-aeg-erg-olive-drab ... as the base plate online looks like it may not foul up on the motors end bell, but we'll see (either way it's nicer than that on my DE M908A, as long as it doesn't put the motor at an unusual angle). Link to comment Share on other sites More sharing options...
Pseudotectonic Posted March 5 Share Posted March 5 (edited) I was just comparing the XT's specs with Chihai's 2 brushless models and here are my findings: 1. Torque vs RPM is also a thing in brushless too, because Chihai's 39k has higher torque (starting torque per amp) than their 48k model by a rather large margin (say about 28% more) 2. Converting the numbers between N.m and kg/cm, XT's actually has a slightly higher torque than Chihai's 39k by about 6%, but of course the RPM is lower 3. Otherwise the spec looks pretty proportional to Chihai's 39k, nothing seems dramatically different 4. However Chihai is using UH grade magnets which I think is rated for 180 Celsius, compared to normal grade (?) of 80 Celsius, which should make it more reliable and stable in game, although this may be a moot point (if there is a mosfet there will be some current protection to prevent overheating in the first place) 5. Personal opinion, Chihai's toggle switch between two speed settings is much more fool proof than XT's fiddly method of switching Edited March 7 by Pseudotectonic They all use UH magnets Link to comment Share on other sites More sharing options...
ak2m4 Posted March 5 Share Posted March 5 (edited) 37 minutes ago, Pseudotectonic said: 4. However Chihai is using UH grade magnets which I think is rated for 180 Celsius, compared to normal grade (?) of 80 Celsius, which should make it more reliable and stable in game, although this may be a moot point (if there is a mosfet there will be some current protection to prevent overheating in the first place) XT one uses UH grade magnet as well, my guess is they all do and it's nothing to get hung up on. I like the toggle switch of CH though, less for the customer to fuck up! Edited March 5 by ak2m4 Pseudotectonic and Colin Allen 2 Link to comment Share on other sites More sharing options...
Supporters Lozart Posted March 5 Supporters Share Posted March 5 5 hours ago, Colin Allen said: It is a PTS grip. That's the same as mine except black! 5 hours ago, Fatboy40 said: @Colin Allen It's subtlety different from yours but I'm going to get one of these next pay day... https://www.ptssyndicate.com/product-page/pts-ep-series-enhanced-polymer-m4-grip-epg-for-aeg-erg-olive-drab ... as the base plate online looks like it may not foul up on the motors end bell, but we'll see (either way it's nicer than that on my DE M908A, as long as it doesn't put the motor at an unusual angle). I've just had a look at one of my spare EPG-C grips, the flanges either side of the height adjuster may still need cutting down a bit, the end bearing on the XT motor is shallower than a regular motor, plus you don't have all the empty space around it where the tabs mount on a brushed motor. Plus they do usually put the motor a touch too steep for me. Not so bad that it shags the motor but not the best meshing! ak2m4 1 Link to comment Share on other sites More sharing options...
Sewdhull Posted March 6 Share Posted March 6 Uh magnets seem overkill for a 150w motor, but the specs look all but the same. https://m.airsoftmotor.com/airsoft-motor/long-shaft-aeg-motor/high-speed-39k-cnc-brushless-airsoft-motor.html ak2m4 1 Link to comment Share on other sites More sharing options...
Leo Greer Posted March 7 Share Posted March 7 I should note, if you’re getting a brushless to overheat or even heat up in any capacity, you’re likely doing something wrong… Lozart and Sewdhull 2 Link to comment Share on other sites More sharing options...
ak2m4 Posted March 8 Share Posted March 8 @Leo Greer yep, should not be generating too much heat. 25-40C ideal battery . I read an post about a guy who used a 75/160C drone battery and it melted the PCB traces on the controller, understandable as that battery will kick out a huge amount of power. As soon as things calm down I'm going to get myself some more batteries and do some heat tests on some different builds. Just slammed with work at the moment Link to comment Share on other sites More sharing options...
Sewdhull Posted March 8 Share Posted March 8 The current that flows is regulated by the resistance of the circuit so any reduction in resistance increases the current flowing. It's motor load that raises the current predominantly because as you can see from motor stats, with no load you're seeing around 2A. Increase load and you raise the current to around 20A. It's possible to keep raising that current by loading the motor even if it's a 30C lipo, making it's revs drop. My cheap 11.1v 25C 2Ah lipos have an IR of about 30mOhms. Short it out and potentially you have 370A for a little while at least, so it's unlikely your battery will be a source for destroying things, but loading the motor. Link to comment Share on other sites More sharing options...
ak2m4 Posted March 8 Share Posted March 8 @Sewdhull check out coconut airsoft on FB, interesting stuff he did with a 45k motor Link to comment Share on other sites More sharing options...
Leo Greer Posted March 8 Share Posted March 8 Interestingly and anecdotally, I most often use a 25C 2200 Mah Kypom LiPo with my T238s, but I also use a Turnigy Nanotech 70-140C 5K Mah brick, which is capable of more than enough output to fry everything in that motor whether shorted or not. I haven't had any issues yet, but I'll let folks know if I do. ak2m4 1 Link to comment Share on other sites More sharing options...
Pseudotectonic Posted March 8 Share Posted March 8 Yeah the battery rated output is a maximum (and often incorrect, only way to know is testing), the actual current is determined by how much load the motor is under. If there is no load (i.e. motor is outside of the gearbox by itself) it will draw a few amps. Even a battery with 9000000 C will only output a few amps in this situation. If there is infinite load (e.g. clamped in a vice so the motor cannot turn) it will draw infinite amp (or shorted), figuratively speaking. A 1000 mAh battery with 10 C will be able to theoretically output 10 A and all of which is turned into pure heat in the motor and very quickly overheat. Leo Greer 1 Link to comment Share on other sites More sharing options...
Sewdhull Posted March 9 Share Posted March 9 18 hours ago, ak2m4 said: @Sewdhull check out coconut airsoft on FB, interesting stuff he did with a 45k motor Looks like he's finding ways to fry MOSFETs Link to comment Share on other sites More sharing options...
dlusted Posted March 11 Share Posted March 11 (edited) Mine arrived, and I've gone to install it in the ARP9 and it's a similar issue with the baseplate. Seems that G&G needs adding to the list for modification I need to square off due to it being shaped to hold the brushed motor in. Need to give it to someone who's got a grinder to do it and I'll revert back when its tested Edited March 11 by dlusted ak2m4 1 Link to comment Share on other sites More sharing options...
ak2m4 Posted March 11 Share Posted March 11 @dlusted added, many thanks Link to comment Share on other sites More sharing options...
dlusted Posted March 12 Share Posted March 12 I've done the modification. Motor can now be adjusted. Hole in gearbox a little tight for the tower compared to the stock G&G motor tower, nothing a quick dermel grind won't sort though. Super happy with the motor, a lot more snappy compared to the G&G. My Titan 3000mAh battery I had zero issues. Will be even better when I redo the gearbox with new gears and shim. I'm not a Tech as only just started Airsoft so my opinion may be invalid, I'm just an eager hobbiest Looking forward to using the other parts I've ordered from @ak2m4 to aftermarket my ARP9. ak2m4 and Lozart 1 1 Link to comment Share on other sites More sharing options...
ak2m4 Posted March 12 Share Posted March 12 @dlusted fantastic mate Link to comment Share on other sites More sharing options...
Fatboy40 Posted 22 hours ago Author Share Posted 22 hours ago @ak2m4Finally got around to sorting out my semi-boneyard CMYA MP5K, needed a v3 spring guide from you as I disassembled the gearbox last weekend and the ball bearing cage just fell apart So, running your brushless motor along with a GATE Titan v3, and I've now a nice little nippy SMG 😁 AB is set to manual and zero percent, but anything else you recommend for GATE Titan users with your motor? Link to comment Share on other sites More sharing options...
