Charging an MP7A1 battery on an imax B6AC

[_K4MF_]

Hiya!

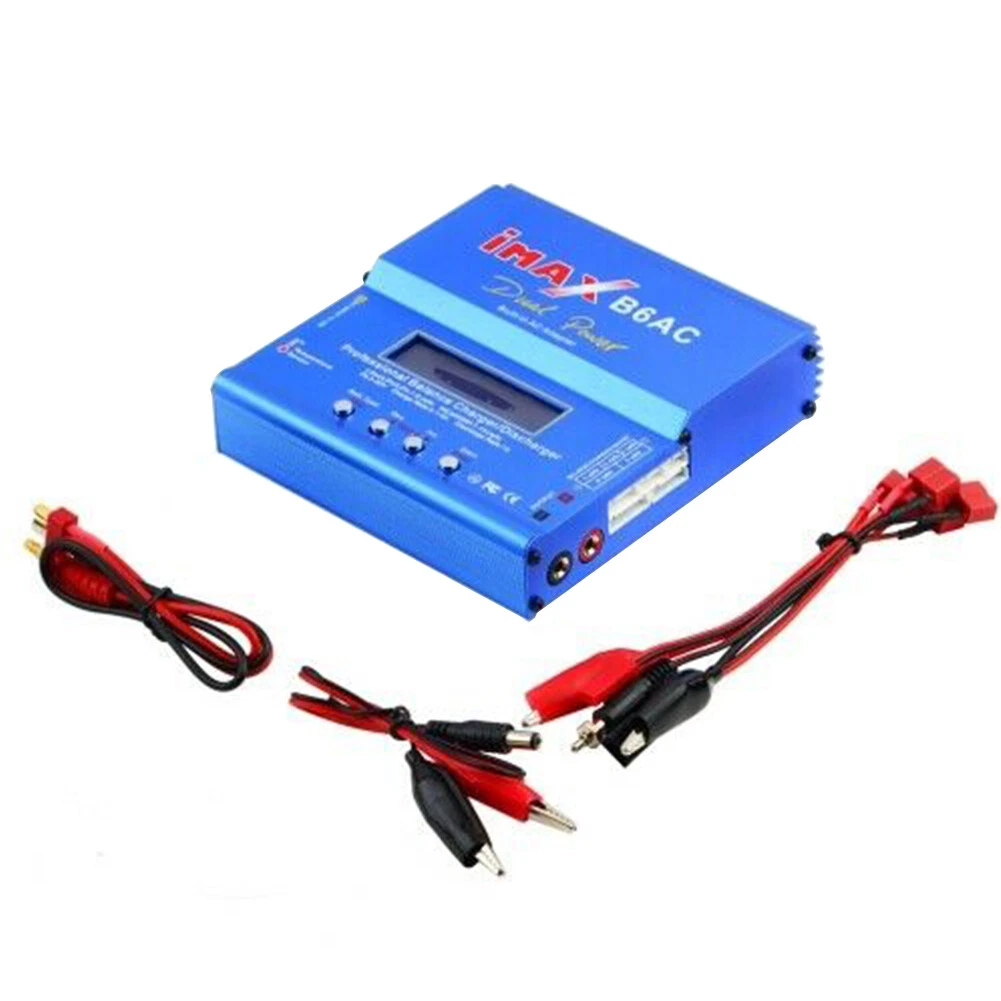

Is it possible, or has anyone had any joy charging a 7.2v AEP battery, using chargers like the Imax B6AC (as below)? Trying to find a charger for the AEP batteries that looks a bit less dodgy than the ones from America, and I have the B6AC for my other batteries, I can only assume there's a way to do it. Advice appreciated, cheers!





*****EDIT*****

https://www.zerooneairsoft.com/products/Tokyo-Marui-Charging-Adaptor-for-AEP-Battery



I think I just answered my own question...

Edited January 17, 2024 by _K4MF_

[EDcase]

Or if you have one of those variable power supplies which come with various plugs and you can solder then make your own...

[_K4MF_]

  On 17/01/2024 at 09:47, EDcase said:

Or if you have one of those variable power supplies which come with various plugs and you can solder then make your own...

Expand



This looks like I'd blow my arm off if I switched the plug on.... Not sure I can be trusted.

[EDcase]

😄

You just have to get the polarity right but up to you.

[Impulse]

Out of stock, but...



https://www.socomtactical.net/jg-aep-battery-charger-adapter/

https://www.patrolbase.co.uk/ipower-charger-adapter-for-lipo-aep-batteries



I have the top one and also a version of the lower one that a friend sorted for me. Works great.

[Sewdhull]

use the croc clips touching the contacts and an elastic band to hold it on, a hair band works too.





[Rogerborg]

  On 17/01/2024 at 18:53, Sewdhull said:

use the croc clips touching the contacts and an elastic band to hold it on, a hair band works too.

Expand



I like to get some small magnets into the mix too.





[Sewdhull]

I dunno that the contacts are magnetic, but if they are, that's a good shout

[Pseudotectonic]

@EDcase just an observation, that solder joint in the picture is a cold joint and might break or overheat (due to poor conductivity)



And yes you can charge an AEP 7.2 V battery, just charge it with NiMH settings (or whatever chemistry it is)

[_K4MF_]

  On 20/01/2024 at 12:38, Pseudotectonic said:

@EDcase just an observation, that solder joint in the picture is a cold joint and might break or overheat (due to poor conductivity)



And yes you can charge an AEP 7.2 V battery, just charge it with NiMH settings (or whatever chemistry it is)

Expand



Thank you

[Rogerborg]

  On 17/01/2024 at 20:17, Sewdhull said:

I dunno that the contacts are magnetic, but if they are, that's a good shout

Expand



They're not, I use small (e.g. 5mmx2.5m) neodymium magnets to stick contacts together.

[EDcase]

  On 20/01/2024 at 12:38, Pseudotectonic said:

@EDcase just an observation, that solder joint in the picture is a cold joint and might break or overheat (due to poor conductivity)

Expand

I know it looks like that thanks but its fine on the other side.
