VFC HK417 GBBR - DMR

[danf1234]

Has anyone locked the HK417 to allow it to be used as a DMR?



What’s involved and what parts are needed?

[Jefferson2000]

If you are looking for a permanent mod then it should just be as simple as filing down a sear.



Not seen inside one but they usually work on a very similar principle to real ones in that regard.



Take off the lower and snap some photos and we might be able to tell.

[danf1234]

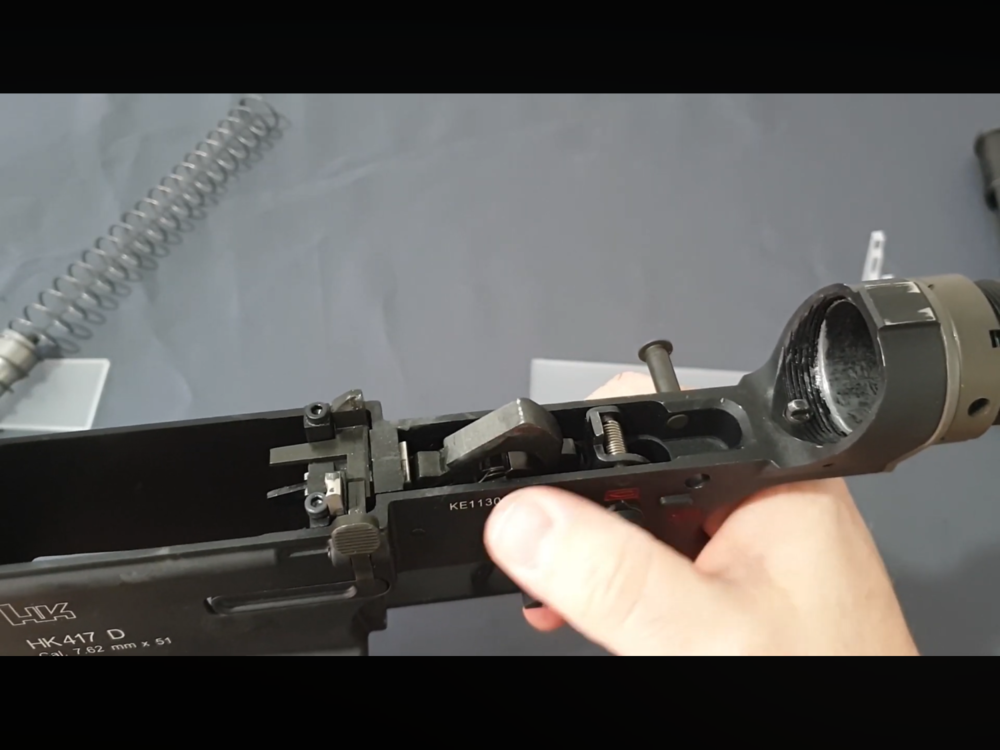

No my gun but this is a pic of the lower. I would want it permanently fixing to semi for use as a DMR

[Jefferson2000]

Yeah looks like filing would work.

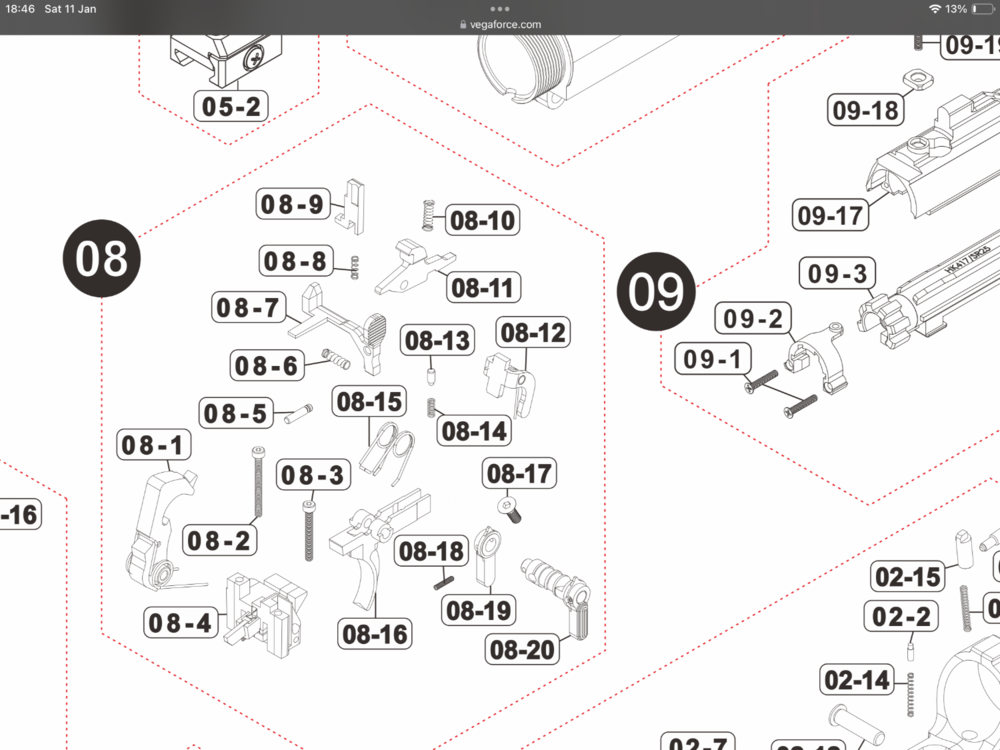

If you could find an exploded diagram we might be able to work it out from that

[danf1234]

[Gavthegat]

Hi bud. You just need a semi ‘disconnector’ to achieve what your after. In the diagram it’s part 08-11, but that’s the wrong type as it allows full auto. German spec HK417s have semi auto disconnectors. Umarex ref is 80.20.0022, probably order direct from VFC.

Edited 2 hours ago by Gavthegat

[Jefferson2000]

Above option is the best if you can order the part.



Also achievable by filing 08-20

I would caution though that parts like these are not designed to function with material removed, and I doubt that they have been case hardened or similar as they would be in a real one. So a real risk of breaking.



But defo buy the part if available as this will retain value if you decide to ship on at some point.

[danf1234]

I have sent an email to VFC customer service to see if that’s a possibility
