Sacarathe

V3 Trigger pull/reset distance (?)

Recommended Posts

TL;DR Are all V3 gun's tigger pull and reset distances distinctly larger than V2 guns? (question not applied to bullpups)

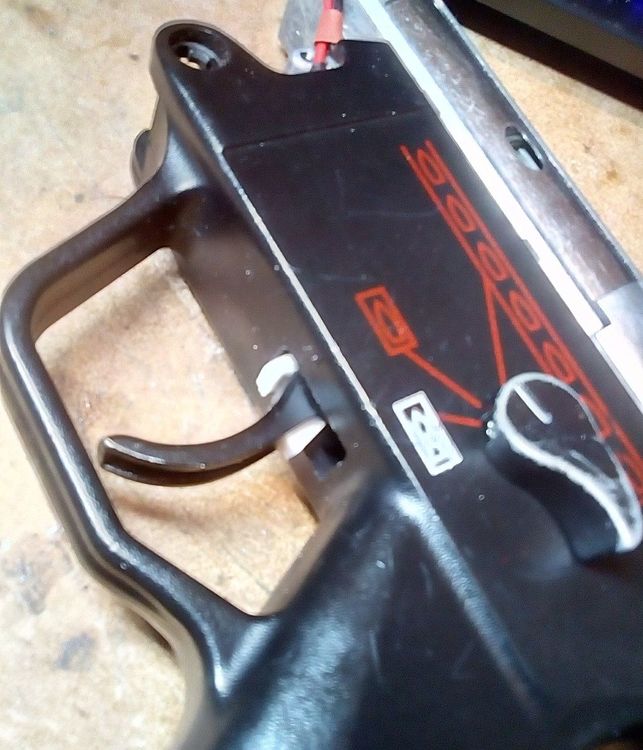

I've noticed over the last few days that, the trigger pull and reset on semi fire with my new MP5K is very different to the V2 guns ive tried, and I was wondering if V3 guns are all distinguished from V2 in this manner, if this a consistent across all V3 guns?



Its clearly that the pivot point is further from the point of contact with the users finger.



I found that I was not able to easily repeatedly discharge the gun on semi, but more importantly the exertion was much higher too, furthermore I had repeated miscycles.



Of course with practice it will get better, but it felt like a distinct disadvantage over a typical V2 trigger mechanism. I had hoped that V3 would be functionally the same as V2.



Obviously play style is a big element of why this might be a problem, unless attempting greater than 2rd/s, it's not going to be a great problem, but such a large trigger pull also affects stability if trying to fire quick on semi. I'm quite an amateur player, i've only just managed to get my cheek welds sorted, so hopefully i'll be firing less shots per hit, but still, it feels like a blanket disadvantage.





OR MAYBE, its just that my trigger finger is a wimp.

Share this post


Link to post
Share on other sites

Basically yes, in V2 gearbox the trigger levers straight against the switch trolley, but in V3 the trigger the trigger levers against another lever that then levers against the switch trolley, resulting in a longer trigger pull. I look at trying to shorten the trigger pull on my TM MP5K by using a BTC Chimera or ASCU as the use micro switches, but because of the nature of the trigger system it wouldn't have made much of a difference, so I just got used to having long trigger pull.

Share this post


Link to post
Share on other sites

I bought a while back one of these:



http://www.ebay.co.uk/itm/AIRSOFT-AEG-8MM-FULL-GEARBOX-47-V3-VERSION-3-FRONT-WIRE-QD-APS-QUICK-RELEASE-AK-/272008716679?hash=item3f54fba187:g:ga0AAOSw4HVWFO0d



NOW DO YOU THINK I CAN FIND THE F*CKER !!!!!



Also bought a v2 box exact same type and 99% sure these used micro switches - short pull on/off

but to use these micro switch boxes you MUST have a fet fitted coz micro switch don't last long on higher juice



AK2M4 had some similar v2's with micro switches and sold the switches should they be needed

but not sure if he stocked the v3's



Now as was said in ya other post - the micro switch has a shorter pull indeed

(still don't fully understand the cut off layout on semi with micro switches)



So if I ever find this mofo bastid v3 from HelmetWorld - snigger soz Helmet World, I'll let ya know the difference



Also I'm sure there was a 10 or 15% code knocking around, I had one but long expired :(



Cheers hef:



http://www.airsoft-forums.co.uk/index.php/topic/16634-the-share-a-bargain-thread/page-10#entry213297



Dunno if still valid but might be worth a shot



yup it ain't cheap but not ultra expensive either - might get it for £55ish which ain't bad for a complete UK box

especially with quick change spring on top



But alas I can't help coz haven't come across it for a while now - too much other crap in this house of ours

(it was placed somewhere safe - now too safe coz I can't friggin' find the thing)



I know the v2 fitted in an old SRC M4 - big improvement, but was too hot with a m110 spring or something and just left it when I got G&G's RIF's

but deffo very short trigger pull in that SRC but no fet was fitted

(hmmm might dig that M4 out and start sorting it out to flog or something)



hope some of this crap helps - probably not



finally I take great offense to the ad's line:



"MAY NEED A QUALIFIED TOY ENGINEER TO FIT"



cheeky f*ckers - where do I get this TOY ENGINEER qualification then

insulting that word - qualified :D

pah I make this crap as I go - natural born bull$hitter me - fully qualified in that area for sure

Share this post


Link to post
Share on other sites

Basically yes, in V2 gearbox the trigger levers straight against the switch trolley, but in V3 the trigger the trigger levers against another lever that then levers against the switch trolley, resulting in a longer trigger pull. I look at trying to shorten the trigger pull on my TM MP5K by using a BTC Chimera or ASCU as the use micro switches, but because of the nature of the trigger system it wouldn't have made much of a difference, so I just got used to having long trigger pull.



Handy to know. Guess I will try and make do.

Share this post


Link to post
Share on other sites

Been reading up since this post as my crappy D68 project and also noticed just how long all the v3 triggers are to pull.



So far made some progress without half the modding with a pin and f*ck knows what some old posts have said in the past.

Some plastic strips 2mm to 3mm thick by 4mm wide

& JB Weld is all you need



Seems that it may work bloomin' well but still early days

But much easier than some friggin' guides I have seen

Reckon the placement/places will also hold up well

But time will tell, could get very very fine trigger pull with a little modding of cut off or just reduce the pull by half with little else messing about



Will see how she fares and maybe post up my findings if it still works over chrimbo say

(Saves going to outlaws I guess)

Share this post


Link to post
Share on other sites
